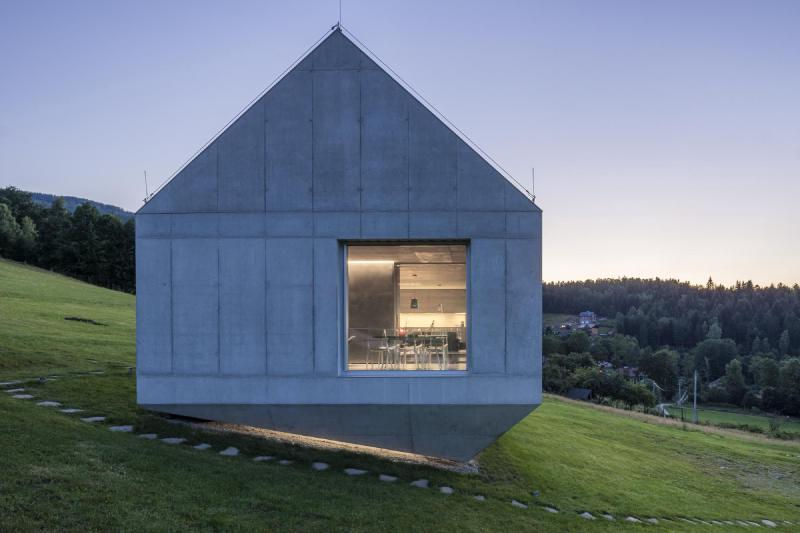

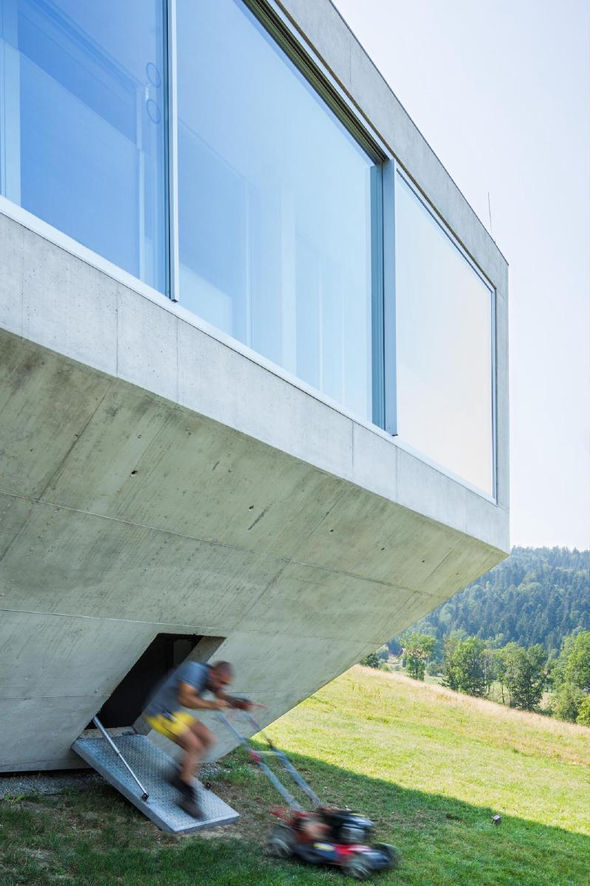

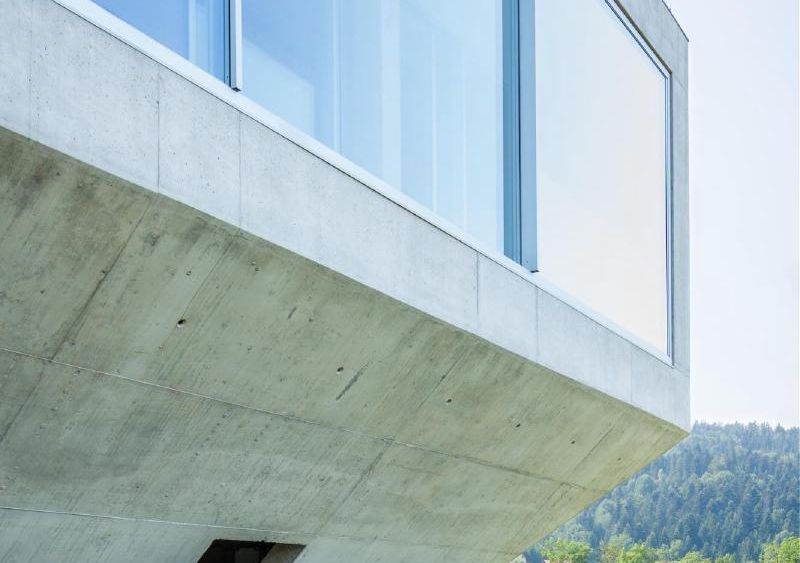

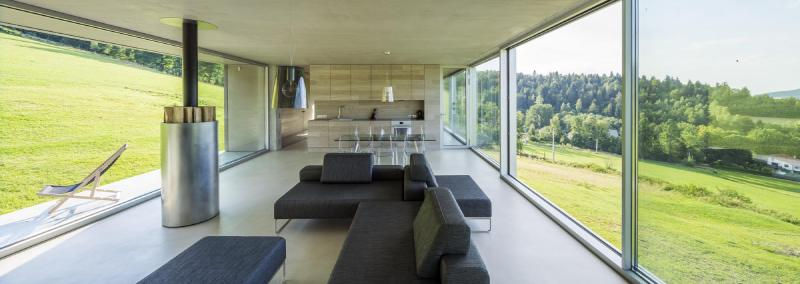

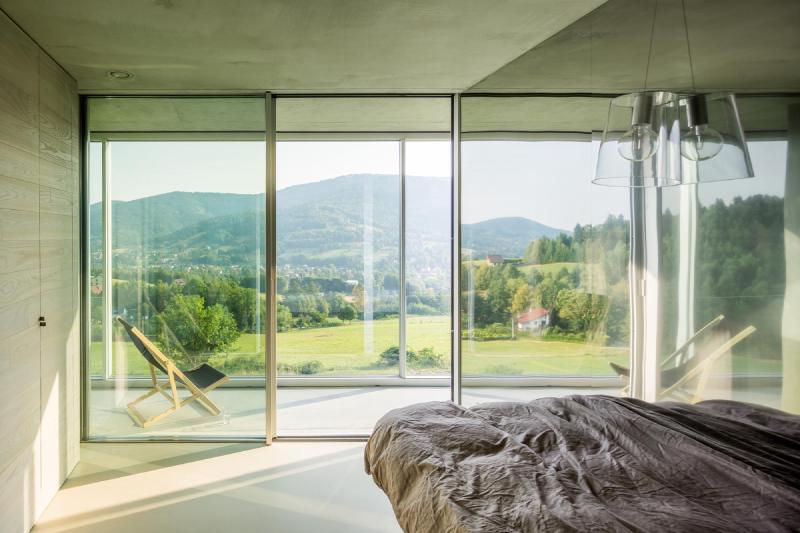

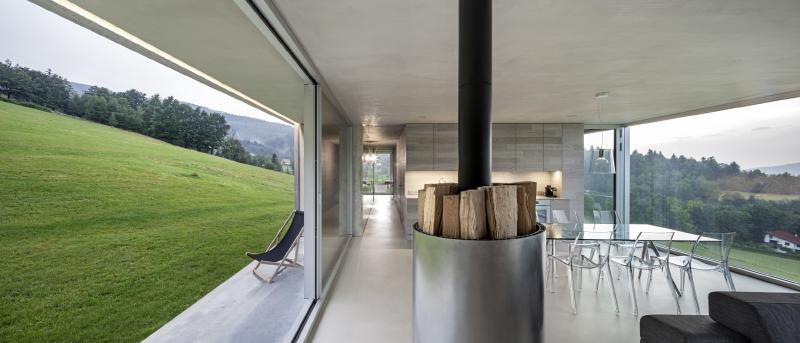

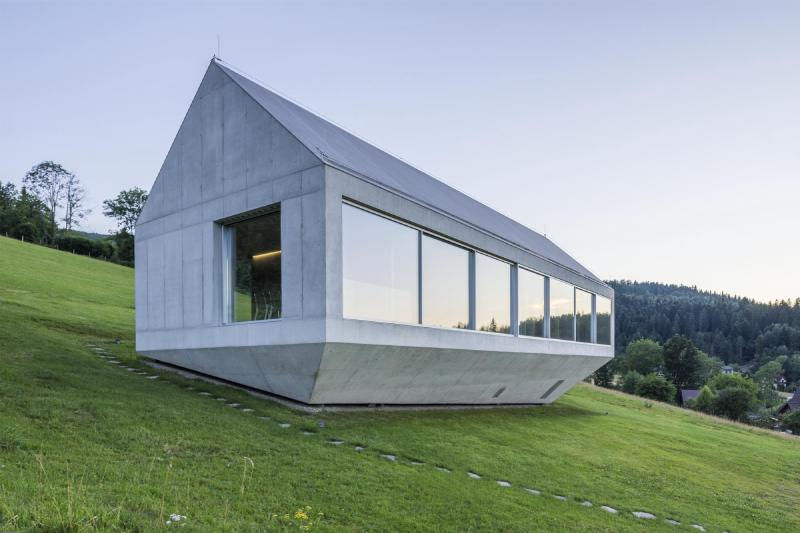

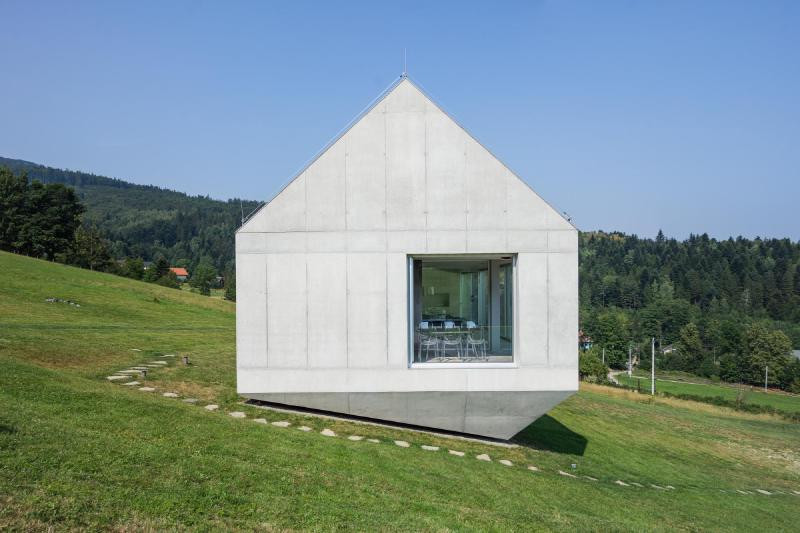

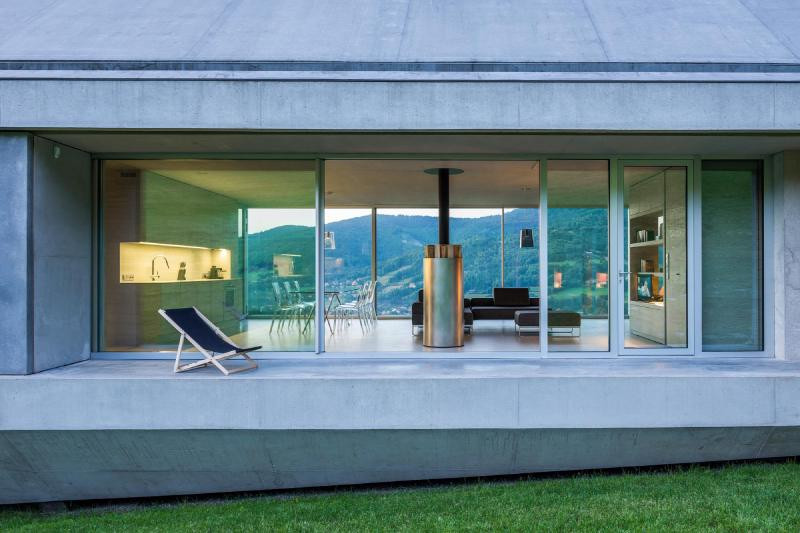

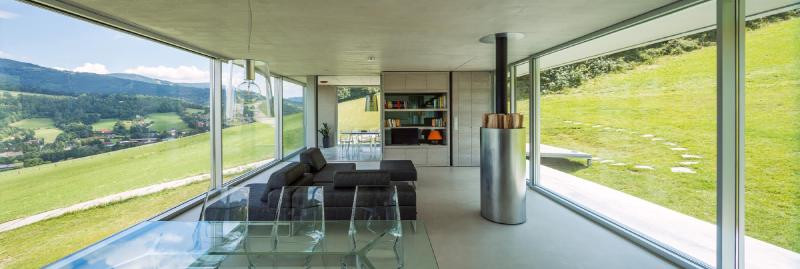

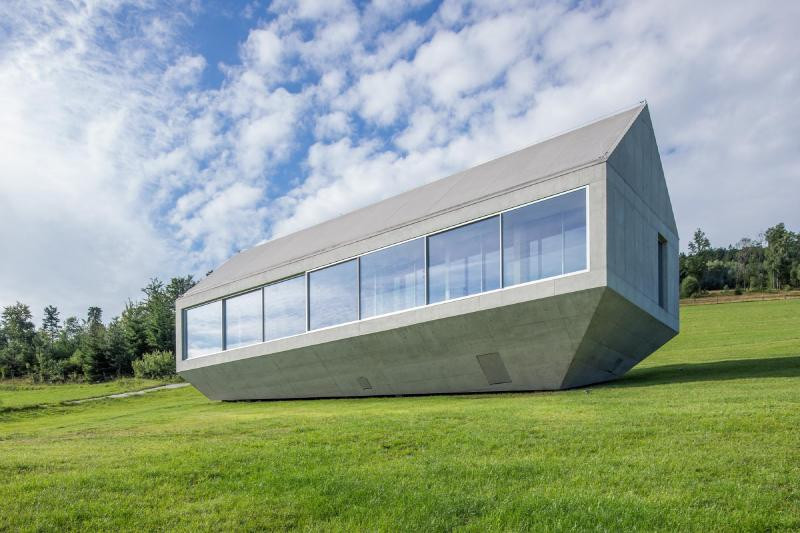

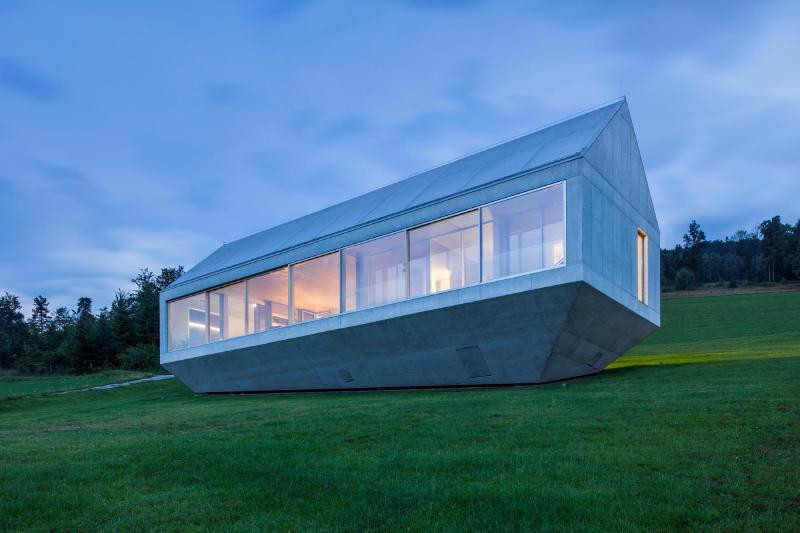

Built in 2015, the Konieczny's Ark is a dramatic countryside retreat located on a hillside in Brenna, Southern Poland, and designed by architect Robert Konieczny and his firm KWK Promes. The house, reminiscent of a barn or boat, was created to blend into the picturesque, mountainous landscape while addressing the challenges of its remote and landslide-prone location. To mitigate the risk of landslides and increase security, the design features a distinctive "twisted" form, with one corner of the house touching the ground while the rest is suspended over the slope. The structure acts like a bridge, supported by three independent walls, which allows rainwater and mud to flow freely underneath without causing damage. A gable roof, required by local building regulations, was "inverted" and tensions the three supporting walls. Constructed from concrete, the interior and exterior finishes are kept minimal and raw, with the concrete serving as both structure and facade. A layer of sprayed closed-cell foam is used for insulation on the inside, which also acts as a vapor barrier. The roof is covered with a TPO membrane. The house is designed to maximize views of the landscape, with floor-to-ceiling windows providing panoramic vistas from every room. A notable feature is the drawbridge entrance, which can be lowered to act as a set of stairs or raised to secure the house and create a window shutter. The house has become a minor tourist attraction, with the space underneath even being used by local grazing animals as a shelter. Credits Architect: Robert Konieczny (KWK Promes) Photography: Jakub Certowicz Engineering collaborator: Comstal (for mechanized elements)


Konieczny's Ark
RESIDENTIAL
House
Brenna, Poland
KWK Promes
Architects:
Area:
138 m²
Year:
2015
City:
Brenna
